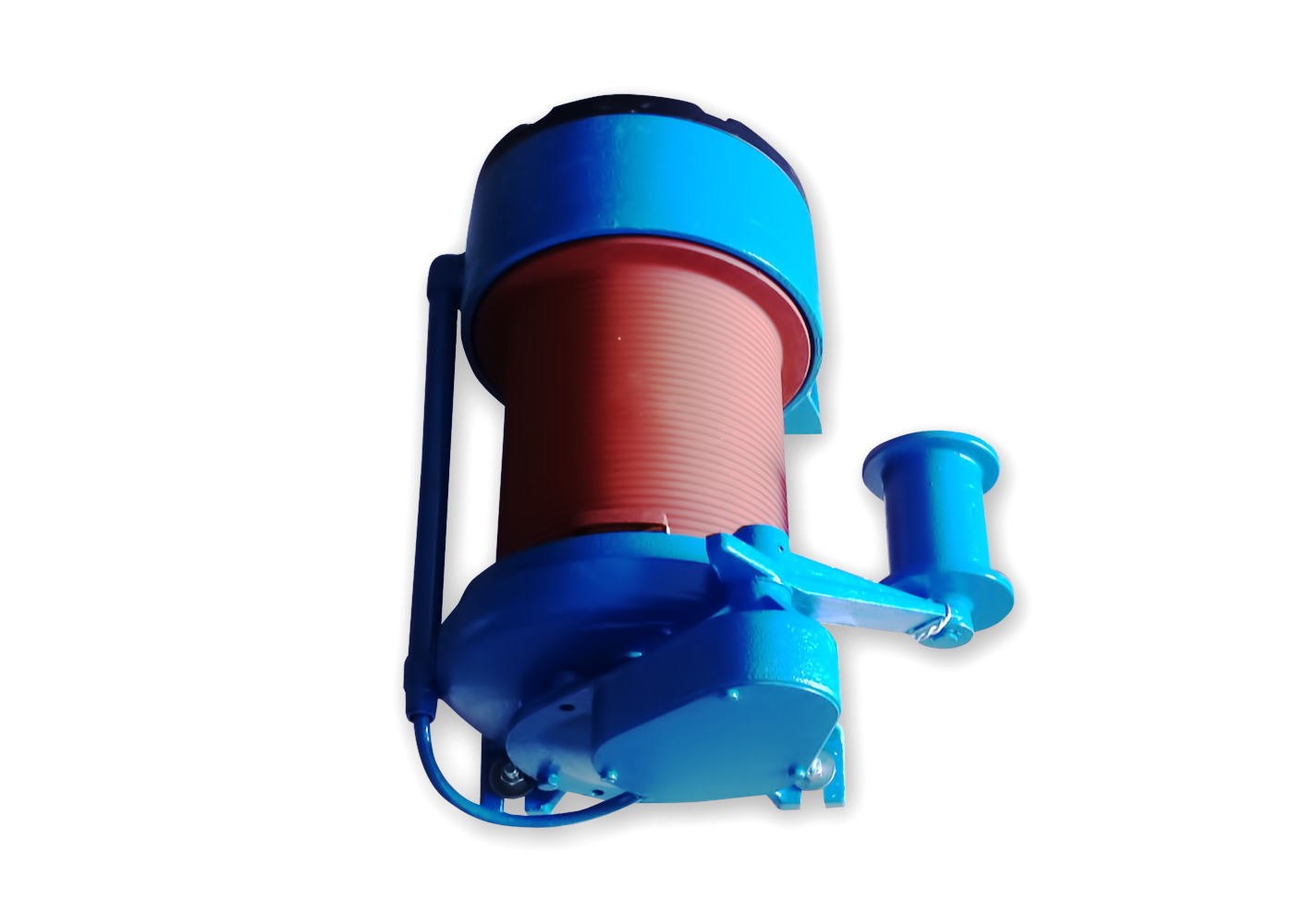

Automatic winches

We offer electric winches which are characterized by a reliable, compact construction and meet the most demanding needs of our customers. Therefore you can find in our offer electric winches that are adapted to almost any type of installation.

Wciągarki
Standard:
  • Group 2m mechanism (M5)
  • Protection class IP 54
  • The built-in controller
  • Stop pulling/li>
Additional options:
  • Protection class IP55, IP56 or IP65
  • Customized turning drum
  • Extended drum cable – up to 3 m
  • The enlarged wheel flange drum for larger or longer cable
  • Additional fixing of the cable that enables cargo back and forth
  • Moving lift as electric winch
  • Reserve manual drive
  • Brake cooling
  • Pulling in a horizontal position with a slow-rotating drum (maneuvering winch)
  • Automatic shutdown in case of loosening the rope
  • A mechanism for winding the rope
  • Rope tensioner roller

Data sheets:



Hand winches

Made of cast steel and cast iron.

Standard:
  • Attaching the cable through the holes and double threaded screws
  • Reliable mechanical or automatic self-locking worm (WH 16 S)
  • Group 1Bm mechanism (M3)
Additional options:
  • Winches can be equipped with a manual crank with a reversible handle
  • Hand crank 050 WH, WH 1 and WH 3 is equipped with rectangular pins (removable)
  • For additional safety WH 3, 5 WH WH WH 10 or 15 may be provided with upper cover
  • WH 2S, 5S WH WH WH 5S or 16S can also be used as a winch to a passing pushing loads
  • With extended drum rope - model Lx
  • Adapted division of the drum
  • Customized design of rope mounting
  • A project for the transport of passengers
  • The project for public areas (according to BGV C1, cf,)
  • A mechanism for winding the rope
  • Rope tensioner roller

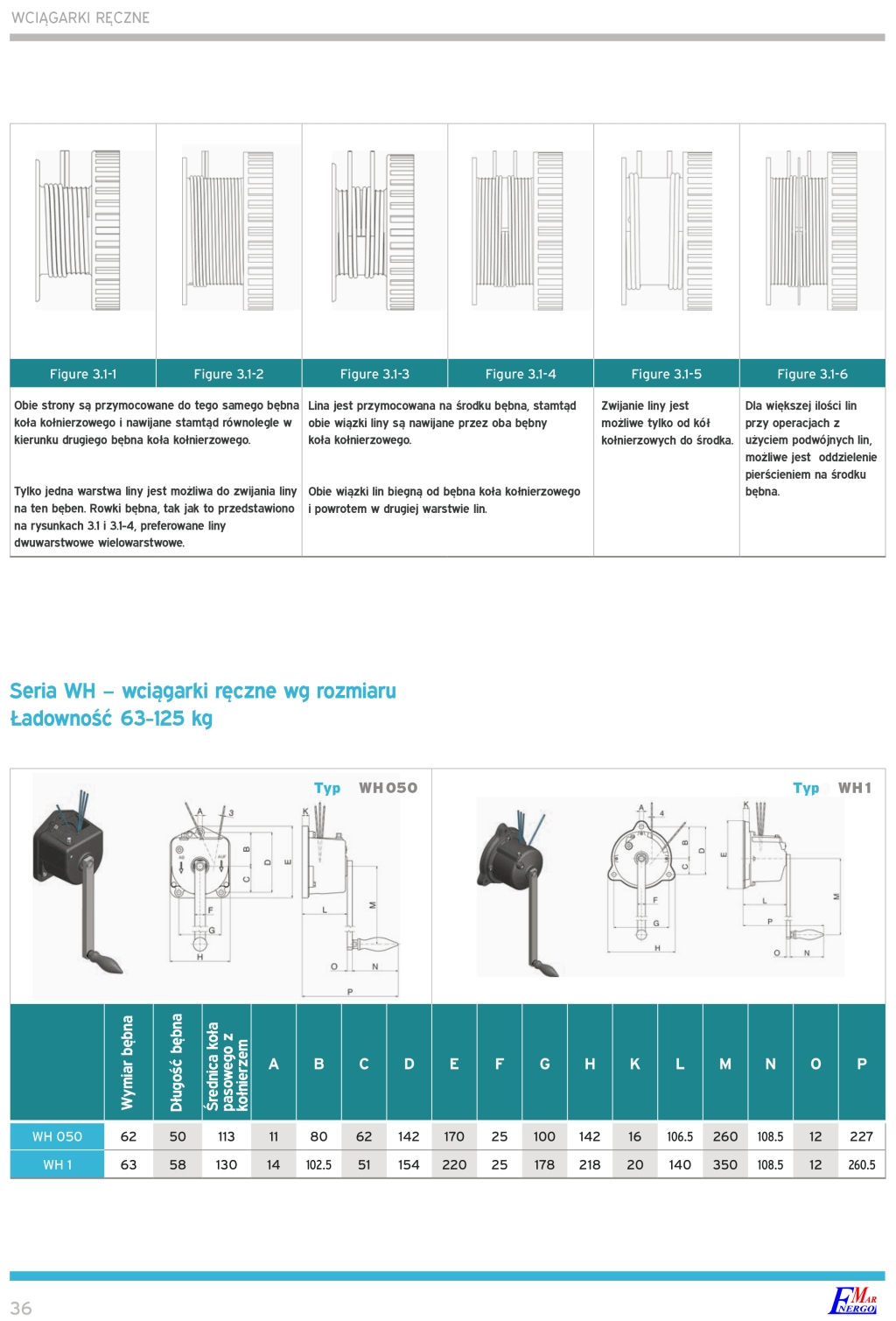

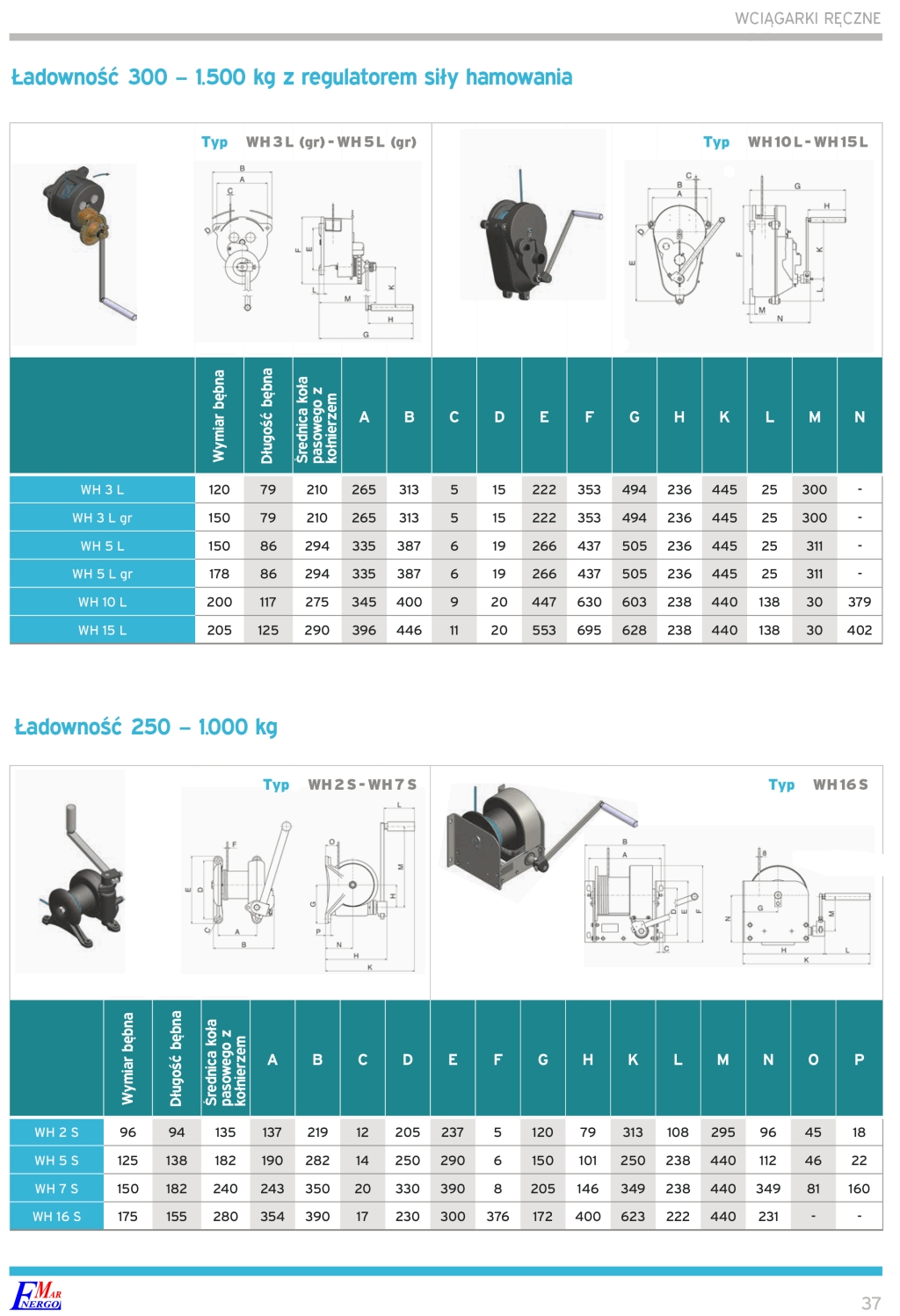

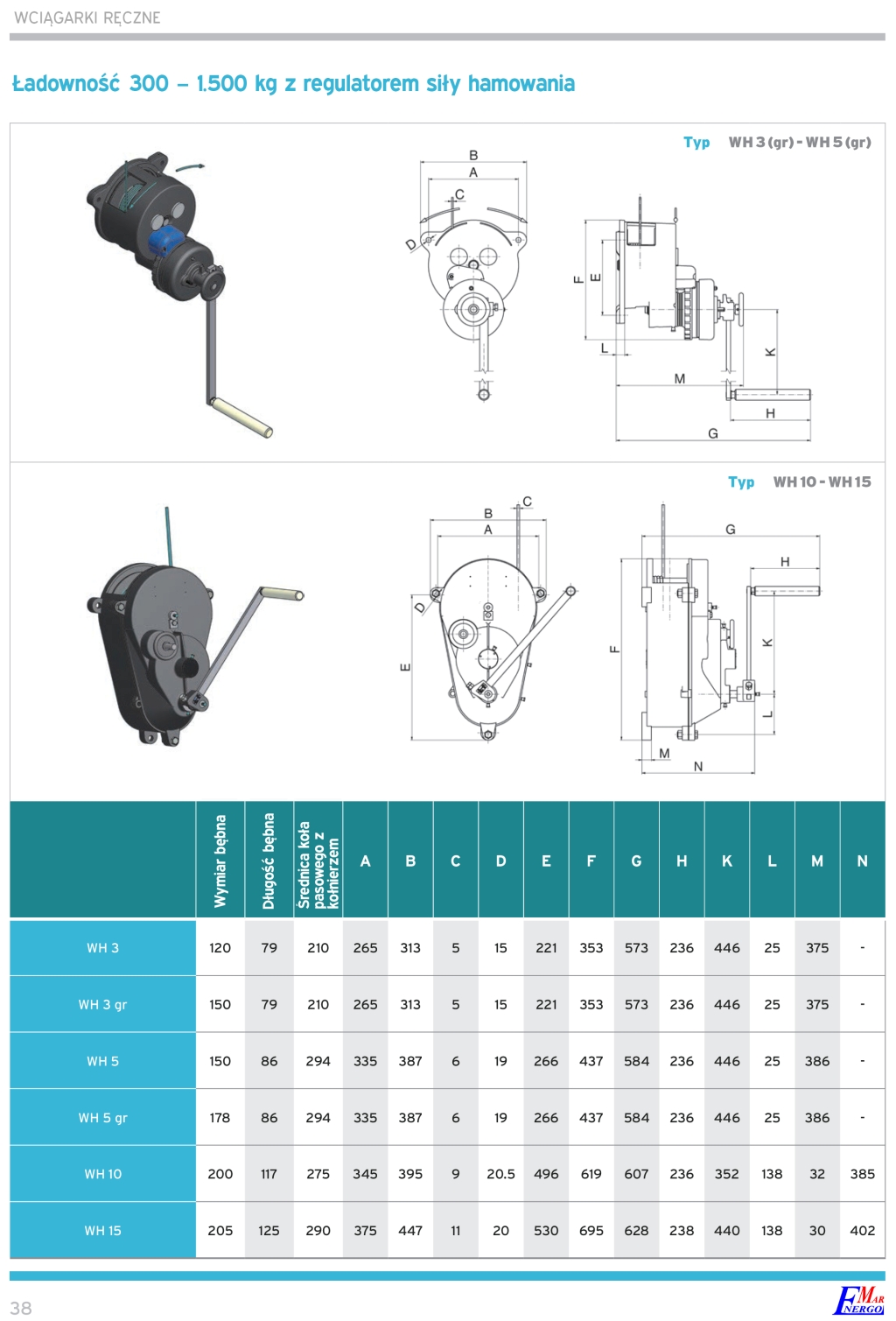

Data sheets:
